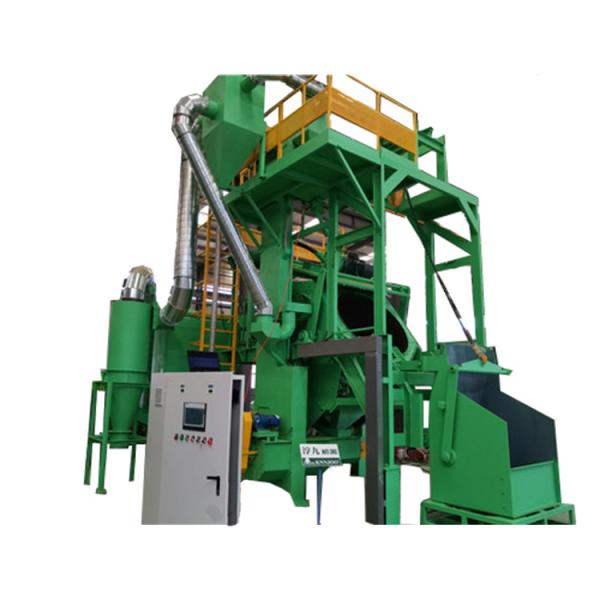

PLC Control Tilt Drum 4.2rpm Automatic Shot Blasting Machine Metal Parts Cleaning

    Buy cheap PLC Control Tilt Drum 4.2rpm Automatic Shot Blasting Machine Metal Parts Cleaning from wholesalers

    Buy cheap PLC Control Tilt Drum 4.2rpm Automatic Shot Blasting Machine Metal Parts Cleaning from wholesalers
    • Buy cheap PLC Control Tilt Drum 4.2rpm Automatic Shot Blasting Machine Metal Parts Cleaning from wholesalers
    • Buy cheap PLC Control Tilt Drum 4.2rpm Automatic Shot Blasting Machine Metal Parts Cleaning from wholesalers
    • Buy cheap PLC Control Tilt Drum 4.2rpm Automatic Shot Blasting Machine Metal Parts Cleaning from wholesalers
    • Buy cheap PLC Control Tilt Drum 4.2rpm Automatic Shot Blasting Machine Metal Parts Cleaning from wholesalers

    PLC Control Tilt Drum 4.2rpm Automatic Shot Blasting Machine Metal Parts Cleaning

    Ask Lasest Price
    Brand Name : KNNJOO
    Model Number : CND-II
    Certification : CE / ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 Sets Per Month
    Delivery Time : 30~50 Working Days
    • Product Details
    • Company Profile

    PLC Control Tilt Drum 4.2rpm Automatic Shot Blasting Machine Metal Parts Cleaning

    Automatic Tilt Drum Shot Blasting Machine for Metal Parts Cleaning


    Drum Shot Blasting Machine Application

    Automatic Tilt Drum Shot Blasting Machine for Metal Parts Cleaning. This Tilt drum shot blasting machine is one of the latest series of cleaning equipment developed by our company. This machine can be used to clean the workpieces that are easy to flip and fall, the non-brittle parts that are not easily crushed, and the cast, forged and welded parts that not with deep cores, and remove the sand and scale on the surface of the workpiece. The whole machine adopts Siemens PLC control, and the degree of automation is high. It can be used in stand-alone or in conjunction with other equipment.
    The machine is composed of the cradle drum, drum turning mechanism, cylinder cover, abrasive circulation system, blast wheel, feeding mechanism, hydraulic system and electrical system.

    1) Drum loading volume:≥0.6m3;

    2) Size(Diameter* length):∅1500×1600L ;

    3) Max loading volume:1200kg/drum;

    4) Max single piece weight:40kg;




    After Shot Blasting! Clean up effect is good!

    Technical Parameter

    NOItemQtyDetail

    Motor Using

    1Blast Wheel1

    Sino-German cooperation technology high speed direct coupling: H900 Type
    Wear parts material: Cr28

    30KW
    2Circulatory system1Bucket Elevator: BES-5D Type; With platform2.2KW×4P

    Separator: WE-3A Type; Wind selection ;
    With inlet tube

    1.1 KW×4P
    Abrasive control system: AGTOS cylinder type flow adjustment deviceGerman technology
    3Door1Automatic lifting method; Rolled Mn13 steel guard plate inside3.75 KW×4P
    4Drum1

    Drum size: ∅1500×1600L
    High manganese steel plate protection

    Oil cylinder drum shaking device;
    Flow abrasive hole:∅12; With stirring blade; Micro-movable discharge, rotary speed: 4.2rpm

    2.2 KW×4P×2
    (sets)

    5Feeding mechanism13T electric chain hoist method,side safety bar 6.6M/min3.7 KW×4P
    6Pipeline1From machine body to the dust collector ; with manual butterfly valve
    7Dust collector1

    Backflush pulse type;
    Air volume: 125m3/min
    Static pressure: 2.5KPa

    7.5 KW×2P
    8Control panel1

    Box type wall mount; Push button operation; Direct start mode;
    Power: Power supply 380V (50Hz)

    PLC: Siemens

    9Dimensions5415×3675×6350 mmL × W × H


    Details Images


    High power direct-coupled Automatic abrasive control valve manufacturing workshop
    Blast wheel Motor: SIEMENS


    Touch Screen & PLC: SIEMENS Welding seams and related surfaces are smooth and regular!
    Automated by PLC controlled.

    Our Advantage








    Loading Site


    FAQ

    Q1: Are you a trading company or a factory?
    A: We are a manufacturer of shot blasting machines integrating industry and trade.
    Q2: Does your product have CE certification?
    A: Yes. We have CE certification.
    Q3:Can I have your quotation?
    A: Please provide us with your workpiece size information and production capacity requirements as much as possible, and then we will recommend a suitable machine for you.
    Q4:How to operate and maintain the machine?
    A: We will provide you with professional and detailed USERGUIDE of the machine and we also provide foreign technical training services.
    Q5:Where is your factory located? How can I visit it?
    A: Our factory is located in Qingdao city, Shandong province, China.
    You can fly to Qingdao liuting Airport, we will pick you up.
