Shot Blasting Machine for Steel Wire Rod in Coils Surface Cleaning

Steel Wire Rod Shot Blasting Machine Application

Shot Blasting Machine for Steel Wire Rod in Coils Surface Cleaning. This machine is the best special equipment which used to cleaning the wire rod, it cleans the scale cinder on the surface of the wire and the surface scales on the rolled steel through the blasting process. The surface descaling grade of the wire rod reach Sa2.5 level after cleaning, and the surface roughness level reach Ra6.3μm ~ 12.5μm. Compared to pickling treatment, it has the characteristics of economy, environmental protection and high efficiency.
This machine use unique "revolving door + 4 meters double cantilever shaft" to load the wire rod in coils, it achieve duplex mode of operation, and greatly increase the production capacity of the equipment. Cantilever shaft is made by special alloy steel, the wire cleaning action of "up and down + swing around + forward and reverse rotation" in the shot blasting process, in order to achieve the cleaning effect. Because of the reasonable blast wheel arrangement, the inner and outer surfaces of the wire rod can be effectively hit by steel shot. The machine is controlled by PLC, with easy and reliable operation.




Before Shot Blasting! After Shot Blasting! Clean up effect is good!

Technical Parameter

Specification of wire rod:

Load mode and productivity:

A. Delivery method: cantilever shaft loading ( When shot blasting, indoor cantilever shaft can works according to the PLC program: clockwise rotation, then counterclockwise; the rotation time is adjustable. Outdoor cantilever shaft is controlled by manual push-button, it is adjusted by staff through the electrical work station )
B. Productivity: 7-15min/cycle
C. Effective length: 4000mm-5500 mm (This machine is 4000mm, can be customized)
D. Rotation speed: 10-20 r/min (Frequency control )

Details Images


High power direct-coupled Automatic abrasive control valve manufacturing workshop
Blast wheel Motor: SIEMENS


Touch Screen & PLC: SIEMENS Welding seams and related surfaces are smooth and regular!
Automated by PLC controlled.

Our Advantage

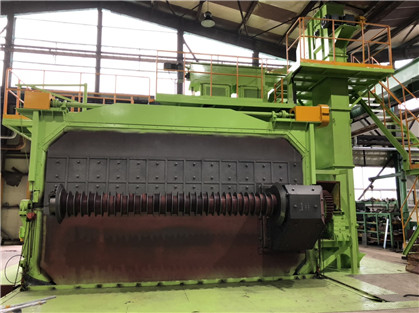

Customer Cases

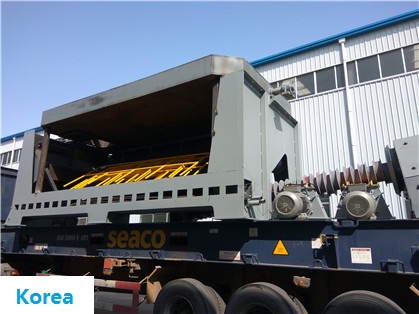

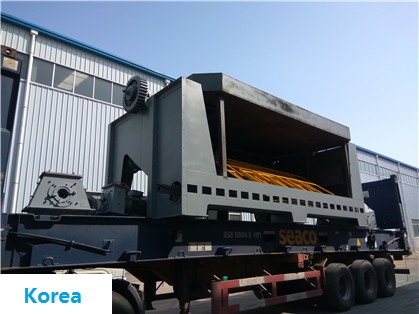

Loading Site










FAQ

Q1: Are you a trading company or a factory?
A: We are a manufacturer of shot blasting machines integrating industry and trade.
Q2: Does your product have CE certification?
A: Yes. We have CE certification.
Q3:Can I have your quotation?
A: Please provide us with your workpiece size information and production capacity requirements as much as possible, and then we will recommend a suitable machine for you.
Q4:How to operate and maintain the machine?
A: We will provide you with professional and detailed USERGUIDE of the machine and we also provide foreign technical training services.
Q5:Where is your factory located? How can I visit it?
A: Our factory is located in Qingdao city, Shandong province, China.
You can fly to Qingdao liuting Airport, we will pick you up.

QINGDAO KNNJOO MACHINE INC. was founded in 2006. Located in the beautiful coastal city, Qingdao. We are a national high-tech enterprise. We mainly produce high-end shot blasting machine, sand blasting room , foundry equipment, dust collector etc. Over the years, we have been insisting on customer-centered, quality and technology-oriented, and devote ourselves to becoming the leading enterprise of Asia's high-end shot blasting machine manufacturing.

We have obtained international I S O 9 0 0 1, German T U V , European Union C E certificates and 24 national invention patents and 8 software copyrights related to shot blasting machine. After years of development, our company's various indicators ranked the forefront of the national shot blasting machine industry for many years.

Our products are exported to 49 countries in the world, such countries and regions as Spain, USA, France, United Kingdom, Korea, Japan, Germany, Australia, Russia, Vietnam and so on, and enjoying a high reputation and public praise at home and abroad.

With the rapid progress of global integration, the company has proposed a new development concept of “building a three-dimensional win-win system and creating global leading quality”, strictly controlling quality and process requirements in management, and striving to grow into a world-renowned enterprise.

We provide perfect services, high-quality products and competitive prices for our customers. Warmly welcome domestic and foreign customers to cooperate with us to achieve common success.

WHY CHOOSE US ?

Customer Above Everything



• We are a national high-tech enterprise.

• 3 national invention patents.

• 24 utility model patents.

• 22 software copyright certificates.

• We have obtained I S O 9 0 0 1,T U V, C E, BV certificates.

• Our engineers with more than 20 years of experience will provide the right solution for you.

• Products are exported to 49 countries worldwide, including Spain, the United States, France, the United Kingdom, South Korea, Japan, Germany, Australia, Russia, etc

• Engineers available to install and debug equipment and provide training services.
