CE Approved Hanging Chain Conveyor Shot Blasting Machine For
Cleaning Alloy Wheels

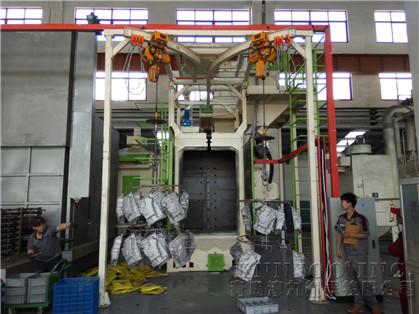

Hanging chain conveyor shot blasting machine desription
This equipment is mainly used for shot blasting of structural
parts, deburring of die-casting parts and homogenization or
hardening of dynamically stressed parts. The hook shot blasting
machine is divided into single hook and double hook. The hook shot
blasting machine is alternately entered into the shot blasting
chamber by the two hooks loading the workpiece. Use a blast wheel
to throw 0.1 ~ 1.5mm abrasives on the surface of the workpiece, so
that the surface of the workpiece reaches a certain roughness, make
the workpiece beautiful, or change the compressive stress of the
workpiece to increase the service life. This model is widely used
in gear, gear shaft, forging, casting, construction, chemical,
motor, machine tool and other industries to clean or strengthen the
surface of small and medium-sized castings and forgings, such as
descaling, burrs, sand castings, etc. And this model is suitable
for cleaning of slender, thin-walled parts that are not suitable
for collision. Hook type shot blasting machine is the standard
model of shot blasting machine. The rotating diameter of the shot
blasting chamber is from 500 to 3000 mm, and the height is from 600
to 3000 mm. Standard model with 2-7 blast wheels, carrying capacity
of 100-10000 kg, this shot blasting machine has a very high
production efficiency and a wide range of flexibility. It is an
ideal cleaning and strengthening equipment and is easy to operate.
You only need to load the workpiece to be processed with a hook,
press the start button, in a short time (usually 5-7 minutes), the
entire cleaning process is completed, all dust and residual shots
are removed, and it is mainly suitable for the surface treatment of
various medium and large castings, forgings, weldments, and heat
treatment parts , Including fragile and irregularly shaped
workpieces.
Technical data
| model | HSK 10/12SL | HSK 12/16SL |
| Maximum diameter of workpiece (mm) | 800-1000 | 1200-1500 |
| Maximum height of workpiece (mm) | 1200 | 1600-1900 |
| Maximum weight of workpiece (kg) | 500 | 1000 |
| Number of shot blasters | 2 | 2-3 |
| Single shot blasting machine power (kW) | 7.5 | 11 |
| Optional power (kW) | 11 | 15 |
Application
Remove rolling chips, forged scales and rust
Remove burrs and scale
Removal of molding sand Increase surface roughness
Increase fatigue strength through sandblasting
