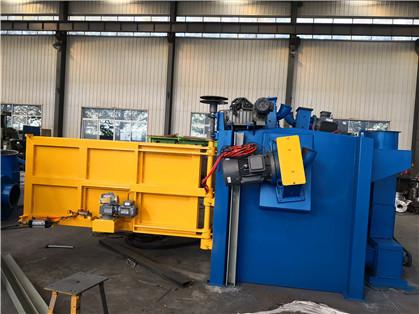

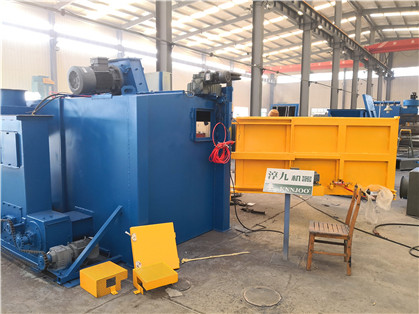

ZT Series airless shot blasting machine for cleaning Diaphragm spring
ZT Series airless shot blasting machine description
The key component of the KNNJOO desktop shot blasting machine is the turntable used to process the workpiece. This type of equipment is most suitable for processing symmetrical parts. The turntable can also be positioned at a certain angle and cooperate with several multi-point positioning heads to achieve Processing of asymmetrical parts. Knnjoo has developed a variety of turntable shot blasting machines to meet the needs of customers for material turnover. In addition to the traditional fixed turntable shot blasting machine, there are also shot blasting machines with one or two moving turntables. This type of equipment allows new parts to be loaded while processing other parts, thereby reducing processing time
Technical datas
type item | ZJ012 | ZJ012F | ZJ012F | ||
Size of cleaning chamber | mm | Ø1350*560 | Ø1350*860 | Ø2654*560 | |
size of cleaning piece | mm | 600*250*250 | 600*250*250 | 1000*500*250 | |
Turn table | loading capacity | kg | 400 | 400 | 1000 |
diameter | mm | Ø1200 | Ø1200 | Ø2500 | |
Blasting apparatus | abrasive flow rate | kg/min | 200 | 2*150 | 2*250 |
power | kw | 11 | 7.5*2 | 15*2 | |
Lifiting amount of elevating conveyor | t/h | 15 | 15 | 30 | |
Separating amount of separator | t/h | 15 | 15 | 30 | |
Abrasive initial filling | kg | 400 | 350 | 1500 | |
Ventilation capacity | m3/h | 2800 | 2800 | 5200 | |
Outline dimensions | mm | 1500*3450*3780 | 1900*1900*4165 | 4260*3647*5366 | |
Powe(excluding dedusting) | kw | 17.3 | 18.7 | 35.2 |
Features
1. The rotary table shot blasting machine is mainly composed of the
chamber body, the turntable, the transmission system, the
separator, the elevator, the blasting device, the shot blasting
device and other parts. With the best orientation, when the
workpiece is turned out of the chamber with the turntable, the
cleaning effect can be directly seen for the next step.
2. Drive the pill scraper to rotate through the transmission
system, and send the shot sand to the lower part of the hoist
through the flow shot tube, and then the hoist lifts to the
separator for separation. The intact shot passes through the blast
tube and the gate for continuous use by the shot blasting machine.
, The broken projectiles and dust enter other corresponding
pipelines separately for secondary separation.
3. The transmission mechanism of the rotary table shot blasting
machine is driven by the friction wheel by the cycloid pin wheel
reducer, and friction transmission occurs with the turntable
through a clutch mechanism, so that the turntable rotates smoothly.
When the workpiece is turned outside, it can be used to directly
flip and adjust the cleaned workpiece; it can also be used to flip
the clutch handle at any time according to the difference of the
cleaned workpiece and the difficulty of loading and unloading the
workpiece to separate the friction wheel from the turntable, that
is, the turntable Stop the rotation and adjust the workpiece, then
change the position of the handle, and the turntable starts to
rotate again.
