Automatic Chain Through Type Catenary Shot Blasting Machine
Automatic Chain through type Catenary Shot blasting Machine Product
Description
Automatic chain through type Catenary shot blasting machine has the
characteristics of high production efficiency and is suitable for
the surface cleaning or strengthening of small and medium-sized
castings, forgings and heat-treated parts in mass
production.Especially suitable for
automotive, tractor, diesel engine, motor valve and other
industries.
Features
short blast times
The catenary shot blasting machine wheelabrator pass-through
monorail type Dshot blast machines (closed loop operation )achiece
short blasting times due to the combination of the latest transport
technology and highly efficient blast wheel workpiece changeover is
carried out semi-automatically or automatically by the power& free
system .the closed loop blast machine is provided with a rotating
device on the monorail which
rotates the loaded workpiece carriers in front of the turbines ,
this means that blast wheel need only be installed on one side of
the blast cabin which lowers maintenance and energy expenses.
Trade Information
| MOQ | 1SET |
| Settlement currency | USD, RMB ,EUR |
| Trade mode | FOB,CIF |
| Payment term | 30%deposit by T/T, the balance paid before delivery |
| Delivery time | With in 20-60days according to different type equipment
|
Automatic Chain Through Type Catenary Shot Blasting Machine Details

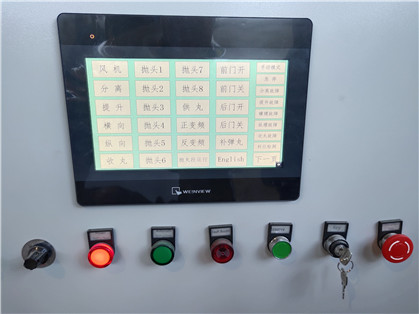

Blast wheel / Tubine / Impeller H400 Electronic Control System
The Technical Features Of This Machine:
1. Adopt the most advanced direct coupled blast wheel
technology(Cooperative R & D with Germany Thyssenkrupp, patent
number: ZL 2015 2 0702933.5)
2. 3D designed blasting angle, side blast wheel make sure the front
and back end face incident angle achieve 35°, which can completely
clean complicated structures.
3. Wear resistant parts for Blast wheel adopt investment casting
Cr28% technology, the lifetime is 3 times of ordinary sand casting
chromium material.
4. Abrasive control unit use the new R&D KC90 pneumatic Plug-in
technology.
5. KJ3715 Scope of supply
No. Part name QTY
1 BLAST WHEEL ACCORDING TO BLASTING CAPACITY
2 Shot-blasting chamber 1set
3 Front sealing sub-room 1set
4 Rear sealing sub-room 1set
5 Top seal structure 1set
6 Pneumatic open door 2sets
7 Rails and supports system 1set
8 Hanging device 1set
9 Bucket elevator 1set
10 Separator 1set
11 Longitudinal screw conveyor 2sets
12 Lateral screw conveyor 1set
13 Collecting shot screw conveyor 1set
14 Platform railing ladder 1set
15 Pilling system 1set
16 Dust collector 1set
17 Electronic control system 1set
Our Company
Qingdao KNNJOO machine Inc. is the subsidiary corporation of joint
venture set up by Qingdao foundry machine CO.,LTD. and taiwan APC
company, the company is mainly manufacture advanced shot blasting
machine, shot blasting equipment and foundry machine.
The company introduct and develop more than one hundred kinds of
shot blasting machine and shot peening machine, more than 20
products filling a domestic gap in this field, the products applied
to many well-known enterprises such as Thyssen Krupp,
SIEMENS,FAW-Volkswagen, Cummins engine, Dongfeng Automobile,Weichai
Power,etc...And the products are exported to 49 countries around the world such
as Spain, France, United States, South Korea, Japan,Singapore,
Australia, Russia and etc.The company enjoy a high reputation and
reputation in the world.
Our Service
1. Installation and commissioning issue: We will send one
technician to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet.
2. Warranty time:12 months from date of commissioning completion,
but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation
drawings, pit design drawings, manual book, electric wiring
diagram, electric manual book and maintenance book, etc.
Any question please kindly contact with us, and welcome to visit
our factory in Qingdao China.
New Sales Promotion!!!Competitive Price!!!Please contact us.
Related Products
Hanger type shot blasting machine Tumblast shot blasting machine
Roller conveyor shot blasting machine Wire mesh shot blasting
machine
Turntable shot blasting machine Drum shot blasting machine Drum
shot blasting machine
FAQ
Agriculture industry
Shot blasting: Tractor components, water pumps, farm implements,
etc.
----------------------------------------------------------------------------------------------------------------------------------------
Automobile industry
Shot blasting: Engine blocks, cylinder heads, break drums, etc.
----------------------------------------------------------------------------------------------------------------------------------------
Building & infrastructure industry
Shot blasting: Structural steel, bars, transmission & television
towers, etc.
---------------------------------------------------------------------------------------------------------------------------------------
Transportation industry
Shot blasting: Engine blocks, axle & crank shafts, diesel engine
components, etc.
--------------------------------------------------------------------------------------------------------------------------------------
Oil & gas industry
Surface preparation: Pipes coating with paper, cement, epoxy,
polythene, coal tar, etc.
---------------------------------------------------------------------------------------------------------------------------------------
Mining industry
Shot blasting: Bulldozer, dumpers, crushers, land fill equipments,
etc.
-------------------------------------------------------------------------------------------------------------------------------------
Foundry industry
Shot blasting: Automobile, tractor, scooter & motor cycle
components, etc.
--------------------------------------------------------------------------------------------------------------------------------------
Aviation industry
Shot peening: Jet engine, blades, propeller, turbine, hubs, land
gear components, etc.
--------------------------------------------------------------------------------------------------------------------------------------
Air polution control equipments
Applications: Foundry, carbon black, furnace, cupola, etc.
------------------------------------------------------------------------------------------------------------------------------------
Ceramic/paver industry
Applications: Antiskid, footpath, hospital, government buildig,
public places, etc.
