CE Steel Pipe Rust Removal Shot Blast Cleaning Machine

Description :

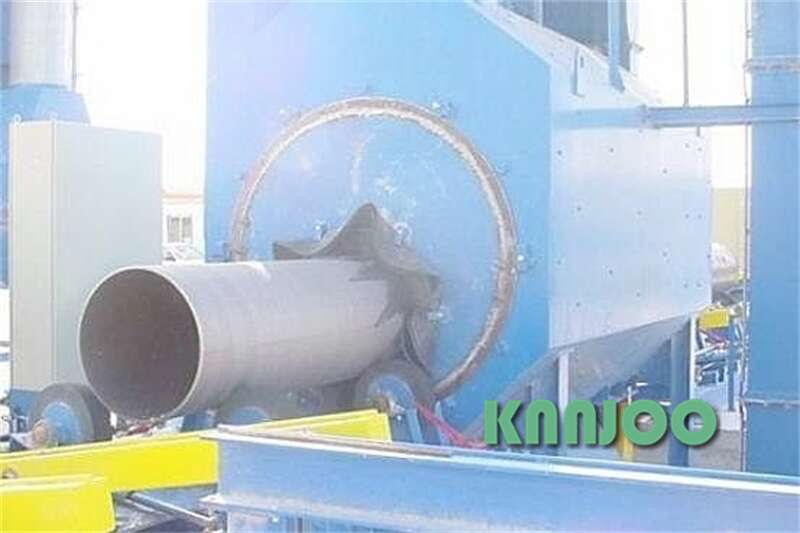

QG Series Steel pipe / Tube Shot dedicated processor inside and outside the wall for the steel and steel products to deal with the outer surface of the shot blasting to remove the oxide layer and debris such as welding slag, showing a metallic luster, to increase their surface area in order to facilitate the work painting and painting. Characteristics: Blast wheel arranged in a suitable location (such as room or the side of body below), the work piece edge to edge into the rotation, will enable the different effect of diameter of the pipe line shot blasting.

CE Tube / Pipe And Solid Bars Shot Blasting Machine TECHNICAL INDEX :

	Unit	QGW10	QGW15	QGW20	QGW25	QGW30	QGW140
Size of workpiece cleaned	mm	Ø 30*100	Ø 50*150	Ø 50*200	Ø 50*250	Ø 50*300	Ø 150*1400
Abrasive flow rate	Kg/min	2*250	2*250	2*250	2*250	2*1000	2*1000
Lifting capacity	Kg/min	30000	30000	30000	30000	30000	1200000
Separating capacity	Kg/min	30000	30000	30000	30000	30000	1200000
Ventilation capacity	M 3	5000	5000	5000	6000	6000	10000
power	kw	50	50	50	50	50	115

APPLICATION :
Steel Tube Shot Blasting Machine is widely used for metal gridding, steel tube, petroleum, chemical, electric power industry. It is a kind of dry cleaning machinery. In the process of forming, processing, transporting and storing of the work piece, there will always be oxide coating, rust, slag, dust, oil and others on the surface. The Steel Pipe Shot Blasting Machine uses high-speed blast to strike and cut the surface of the work piece in dry and non-fluid media, and realize the cleaning purpose.

SERVICE :
In order to give you the suitable machine , pls provide below message for us :
1. What is your workpiece and the material and the shape ?
2.The Max. Length/Width/Height of the workpiece and the MAX./MIN.weight of your workpiece ?
3.The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
4. The power supply you need( Our China :380V, 3PH, 50HZ)
5. Better to send us the workpiece photo or drawing.

QINGDAO KNNJOO MACHINE INC. was founded in 2006. Located in the beautiful coastal city, Qingdao. We are a national high-tech enterprise. We mainly produce high-end shot blasting machine, sand blasting room , foundry equipment, dust collector etc. Over the years, we have been insisting on customer-centered, quality and technology-oriented, and devote ourselves to becoming the leading enterprise of Asia's high-end shot blasting machine manufacturing.

We have obtained international I S O 9 0 0 1, German T U V , European Union C E certificates and 24 national invention patents and 8 software copyrights related to shot blasting machine. After years of development, our company's various indicators ranked the forefront of the national shot blasting machine industry for many years.

Our products are exported to 49 countries in the world, such countries and regions as Spain, USA, France, United Kingdom, Korea, Japan, Germany, Australia, Russia, Vietnam and so on, and enjoying a high reputation and public praise at home and abroad.

With the rapid progress of global integration, the company has proposed a new development concept of “building a three-dimensional win-win system and creating global leading quality”, strictly controlling quality and process requirements in management, and striving to grow into a world-renowned enterprise.

We provide perfect services, high-quality products and competitive prices for our customers. Warmly welcome domestic and foreign customers to cooperate with us to achieve common success.

WHY CHOOSE US ?

Customer Above Everything



• We are a national high-tech enterprise.

• 3 national invention patents.

• 24 utility model patents.

• 22 software copyright certificates.

• We have obtained I S O 9 0 0 1,T U V, C E, BV certificates.

• Our engineers with more than 20 years of experience will provide the right solution for you.

• Products are exported to 49 countries worldwide, including Spain, the United States, France, the United Kingdom, South Korea, Japan, Germany, Australia, Russia, etc

• Engineers available to install and debug equipment and provide training services.
