    15 GN Steel Crawler Belt Shot Blasting Machine CE Certificate For Cleaning

    Ask Lasest Price
    Brand Name : KNNJOO
    Model Number : 15GN
    Certification : CE / ISO9001/TUV
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 90 Sets Per Month
    Delivery Time : 45~50 Working Days
    • Product Details
    • Company Profile

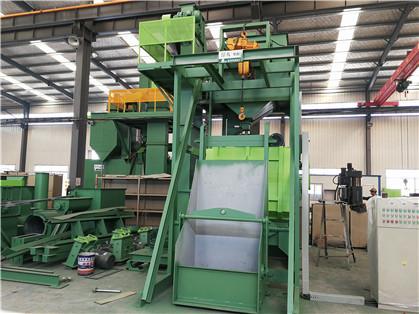

    15 GN Steel Crawler Belt Shot Blasting Machine CE Certificate For Cleaning

    15 GN Steel Crawler Belt Shot Blasting Machine For Cleaning CE Certificate RFQ


    Tumblast Shot Blasting Machine Application

    15Gn series steel belt shot blasting machine is used to remove the sticky sand, rust layer and scale, burr on the surface of castings, forgings and other workpieces that are easy to roll and fall, non-brittle parts that are not easy to be crushed, and the surface of the casting is not deep. Due to its good protection measures, strong shot blasting performance, and reasonable circulation system structure, it can also achieve satisfactory results for difficult-to-clean workpieces.


    Technical parameters

    1.1 Loading capacity of drum: ≥0.43m3;

    Chamber Size (diameter × length): ≥Φ1092 × 1245mm;

    1.2 Maximum loading capacity: ≥1500kg / drum

    1.3 Maximum single piece weight: ≥250kg;

    Working efficiency: (shot blasting time per drum) ~ 20min;

    Annual shot blasting capacity: about 14000-20,000 tons;


    NoItemComponent composition and descriptionQty(Set)
    1

    Blast wheel assembly


    Blast wheel,Motor1
    2Shot blasting roomSteel structure and Swedish imports (HARDOX HD600) Protection board1
    3Abrasive gatePneumatic1
    3Feeding doorSteel structure and Swedish imports (HARDOX HD600) Protection board,Chain hoist1
    4

    Bucket elevator


    Transmission system, casing, belt, hopper, tensioner, pulse detection device, maintenance platform, etc.1
    5Bottom screw conveyorScrew shaft, reducer and conveying trough, etc.1
    6SeparatorConveying screw, roller sorting, wind sorting area and maintenance platform, etc.1
    7Dust removal partPulse back blowing dust collector, cyclone dust collector, fan and pipeline, etc.1
    8Electrical SystemElectric control box, cable and bridge...1
    9Spare parts for freeBlades,distributor,control cage, etc.1

    After Shot Blasting! Clean up effect is good!

    Details Images


    High power direct-coupled Automatic abrasive control valve manufacturing workshop
    Blast wheel Motor: SIEMENS


    Touch Screen & PLC: SIEMENS Welding seams and related surfaces are smooth and regular!
    Automated by PLC controlled.

    Our Advantage


    WHY CHOOSE US ?


    Customer Above Everything


    • We are a national high-tech enterprise.

    • 3 national invention patents.

    • 24 utility model patents.

    • 22 software copyright certificates.

    • We have obtained I S O 9 0 0 1,T U V, C E, BV certificates.

    • Our engineers with more than 20 years of experience will provide the right solution for you.

    • Products are exported to 49 countries worldwide, including Spain, the United States, France, the United Kingdom, South Korea, Japan, Germany, Australia, Russia, etc

    • Engineers available to install and debug equipment and provide training services.


    Loading Site



    FAQ

    Q1: Are you a trading company or a factory?
    A: We are a manufacturer of shot blasting machines integrating industry and trade.
    Q2: Does your product have CE certification?
    A: Yes. We have CE certification.
    Q3:Can I have your quotation?
    A: Please provide us with your workpiece size information and production capacity requirements as much as possible, and then we will recommend a suitable machine for you.
    Q4:How to operate and maintain the machine?
    A: We will provide you with professional and detailed USERGUIDE of the machine and we also provide foreign technical training services.
    Q5:Where is your factory located? How can I visit it?
    A: Our factory is located in Qingdao city, Shandong province, China.
    You can fly to Qingdao liuting Airport, we will pick you up.
